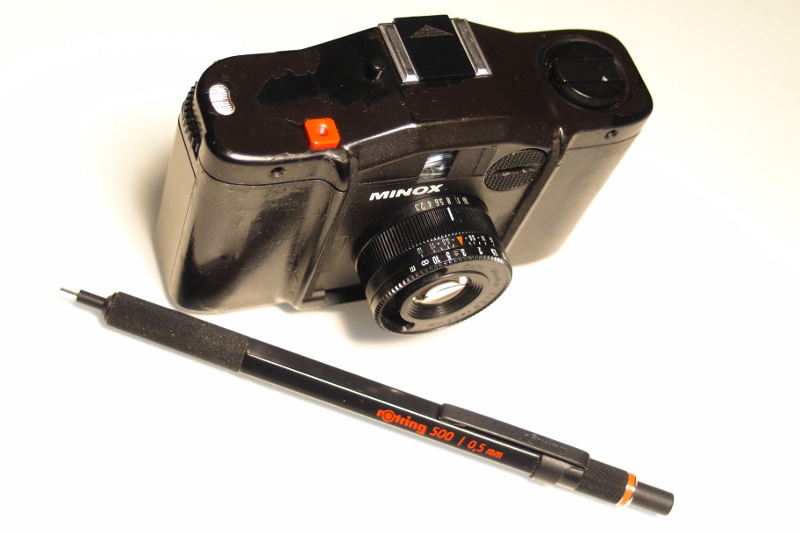

Minox HF part 2 – MacGyverism

MacGyver    Created by Lee David Zlotoff, Henry Winkler-John Rich Productions

Notice the duct tape on the propeller (bottom right)

MacGyverism

Definition:  ‘To make, form, or repair (something) with what is conveniently on hand’ – Merriam-Webster. ‘Make or repair (an object) in an improvised or inventive way, making use of whatever items at hand’ – Oxford Dictionaries

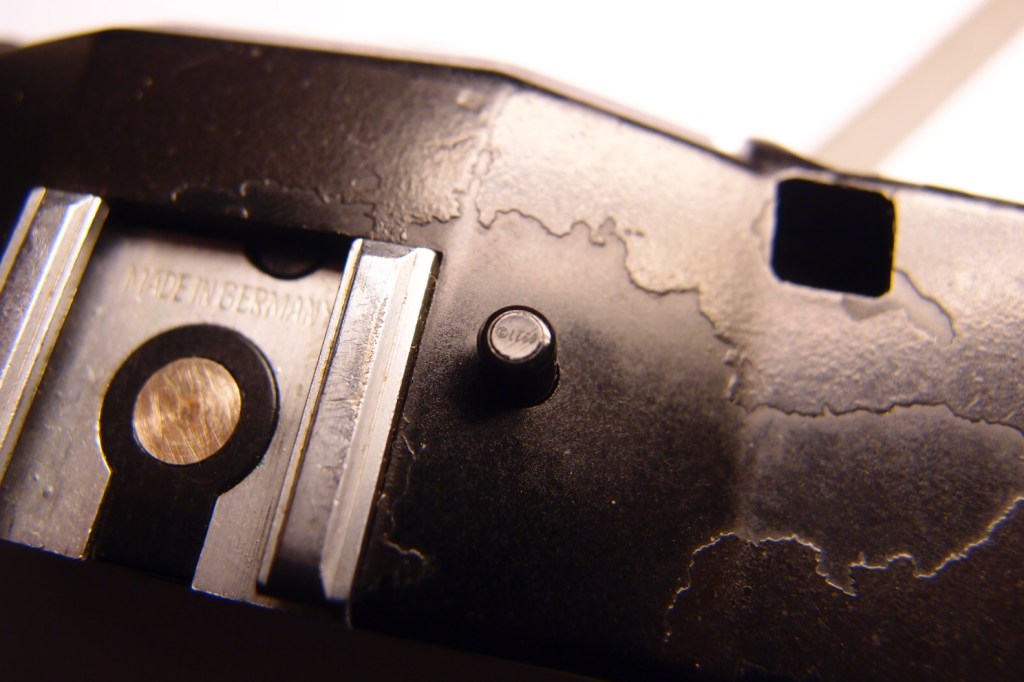

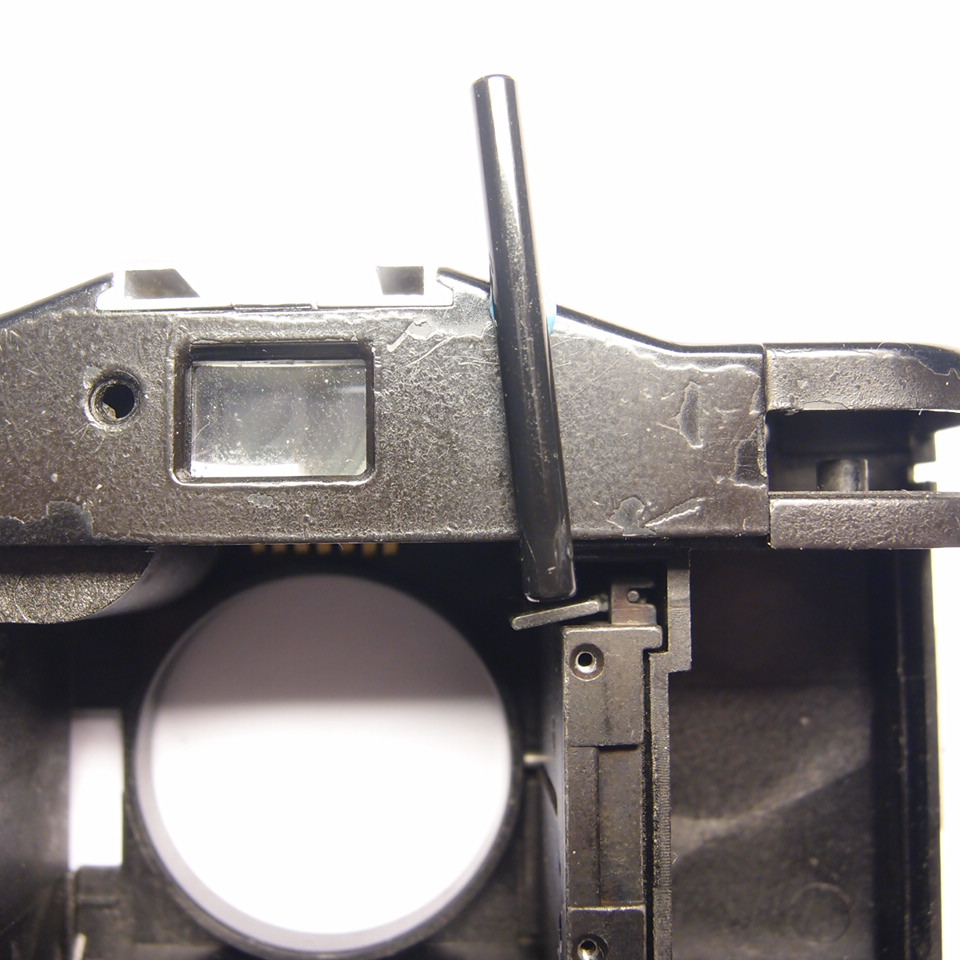

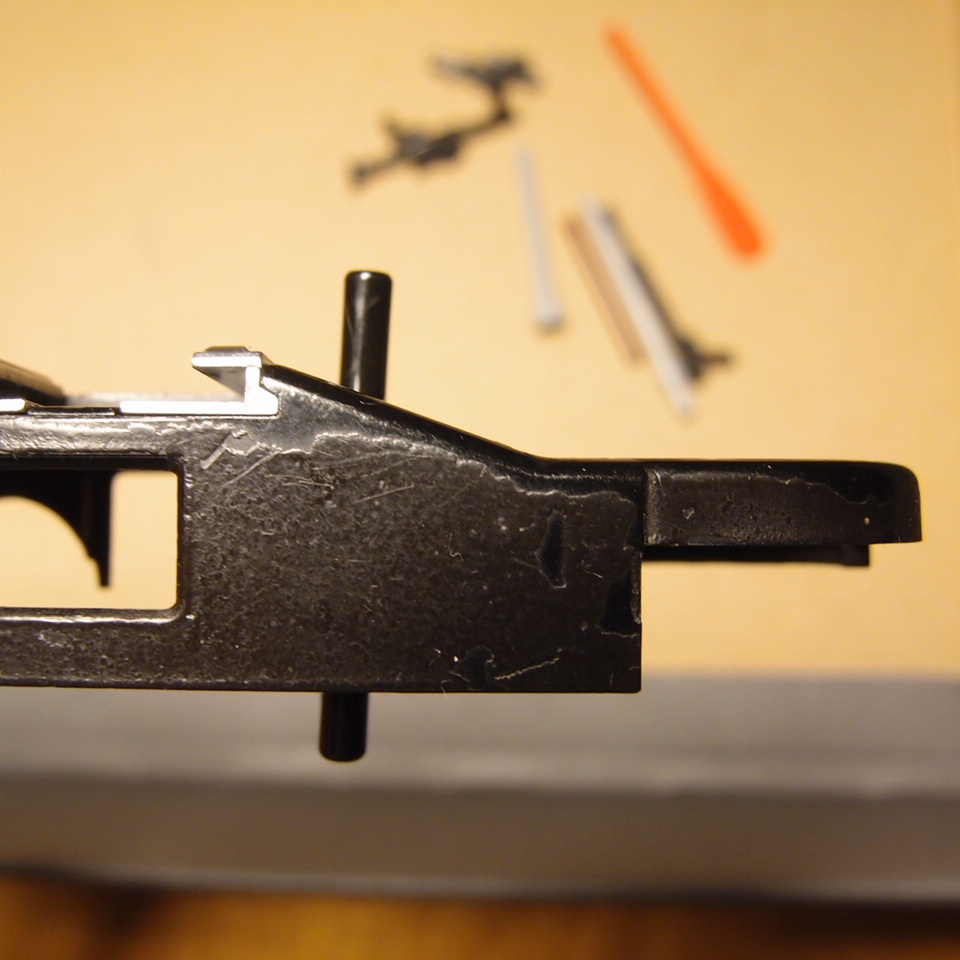

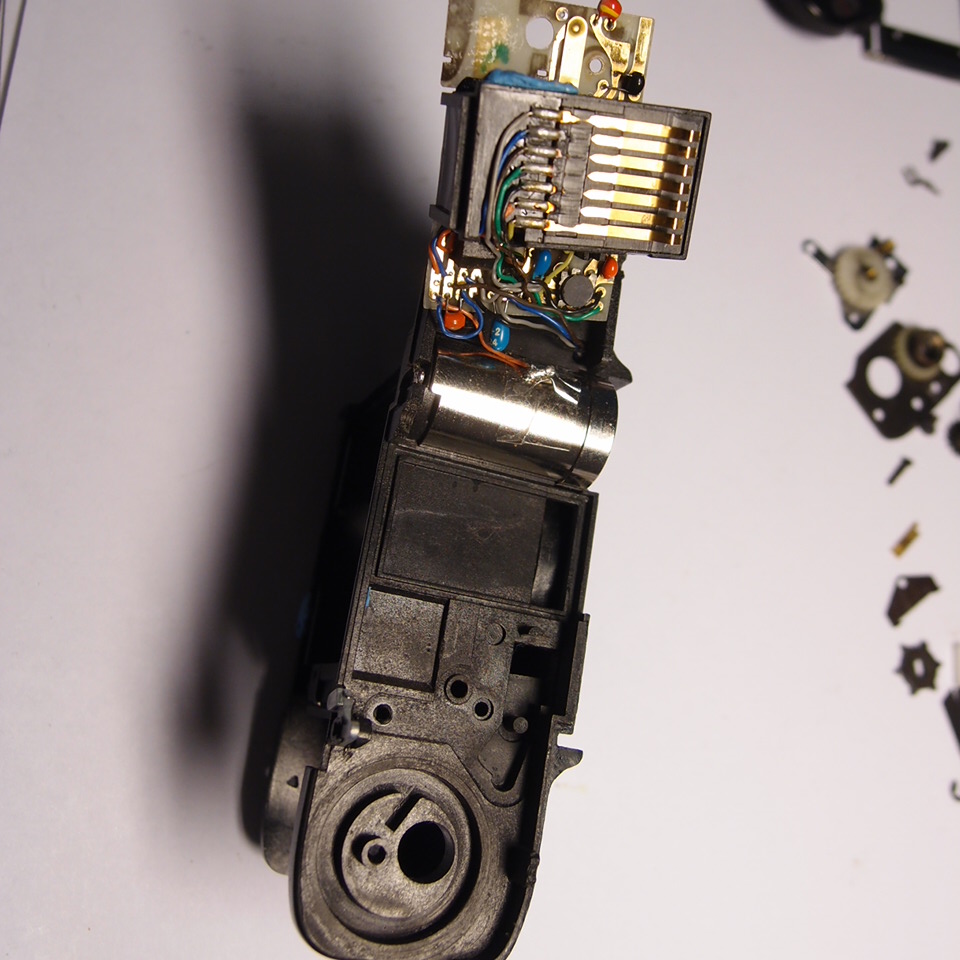

Lego plastic rod to engage the shutter mechanism

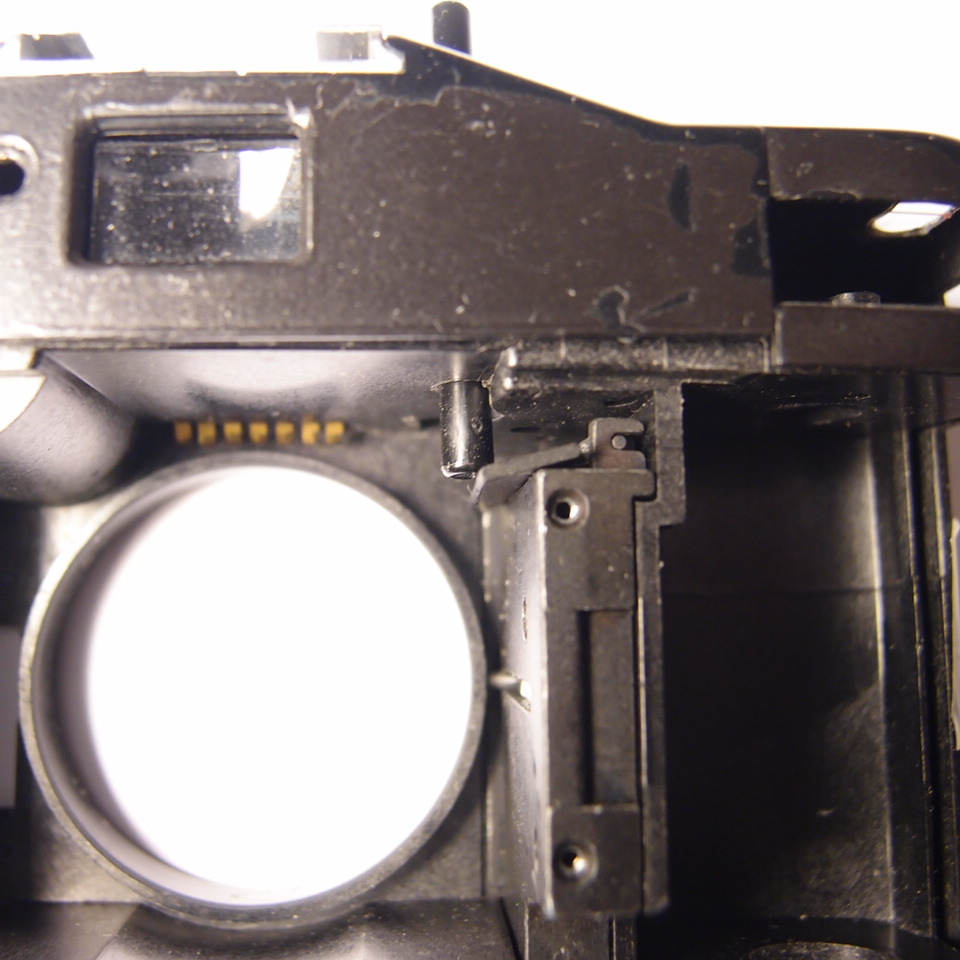

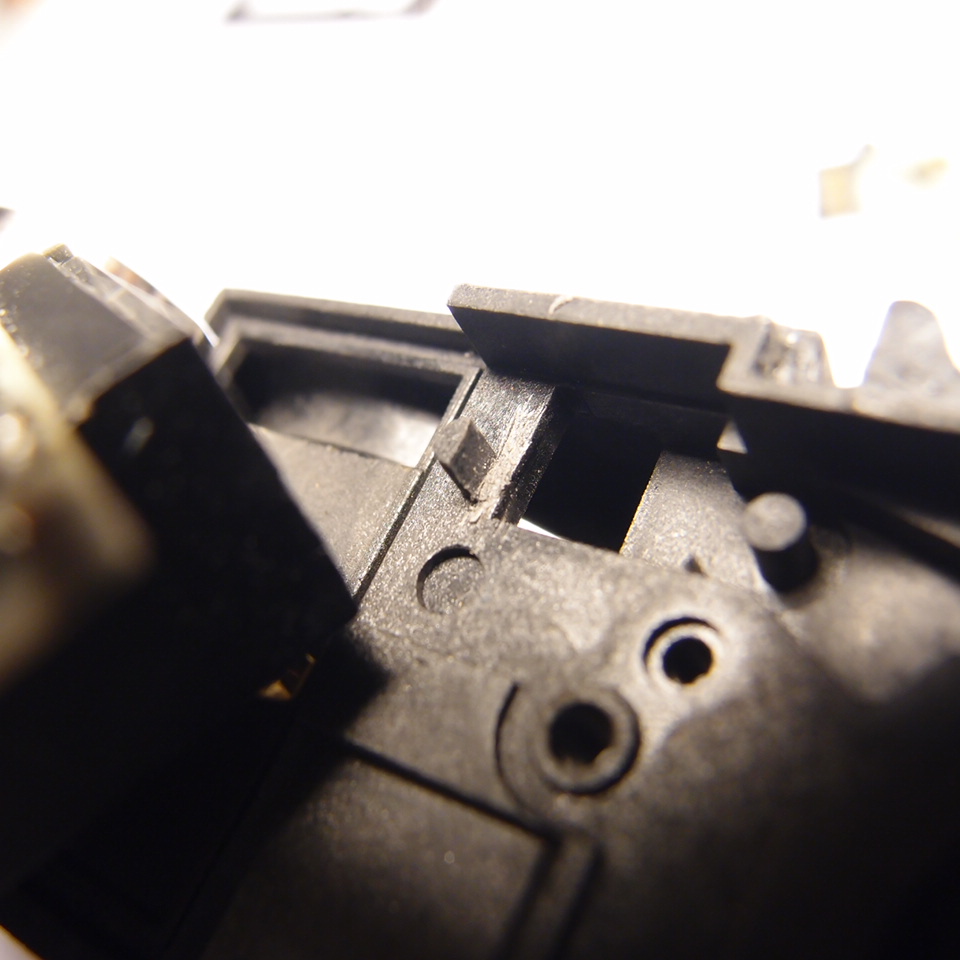

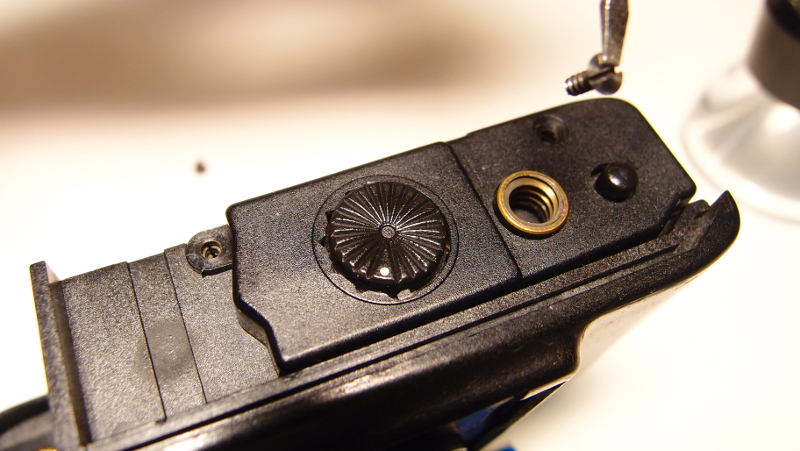

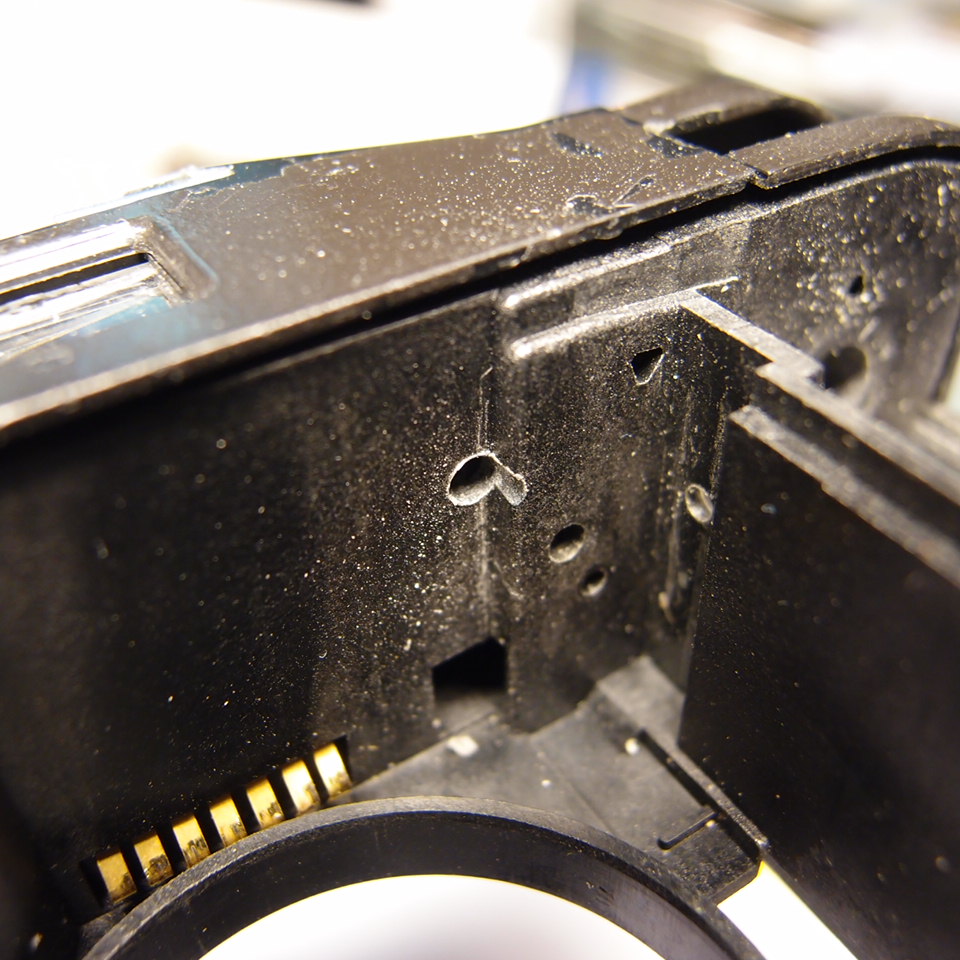

With the meter removed, this gives us the space to engage the shutter mechanism from above via the battery test button opening

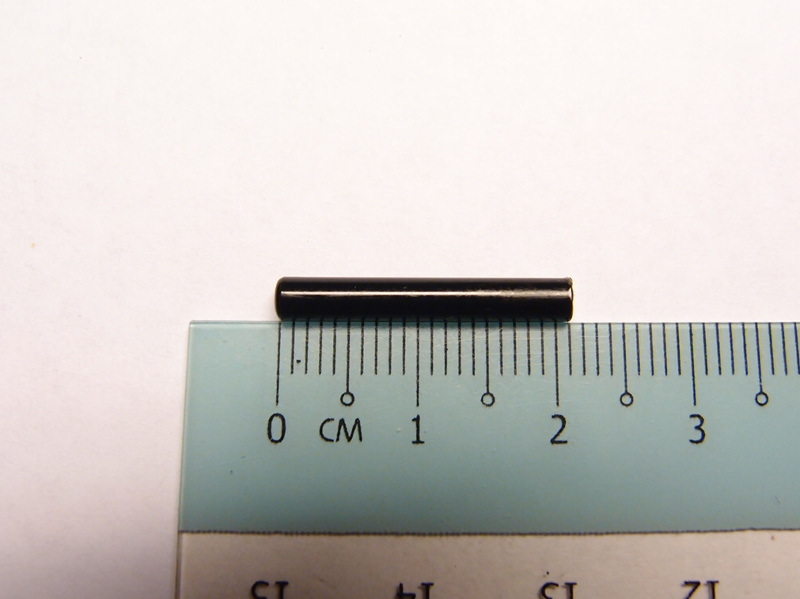

Found a suitable plastic Lego rod that had the perfect diameter

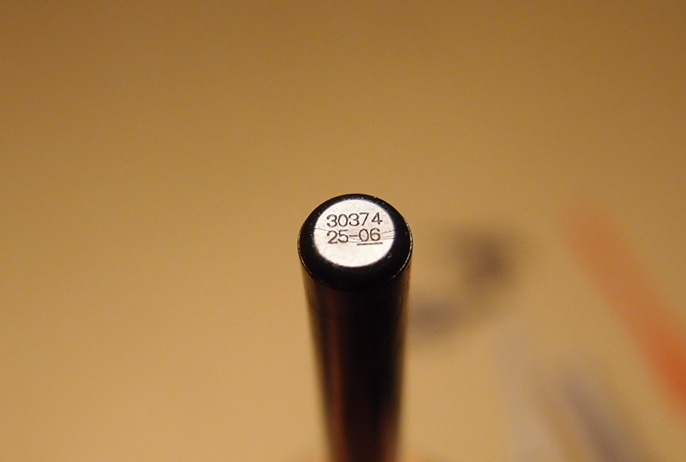

Part number
slightly away from the fulcrum point

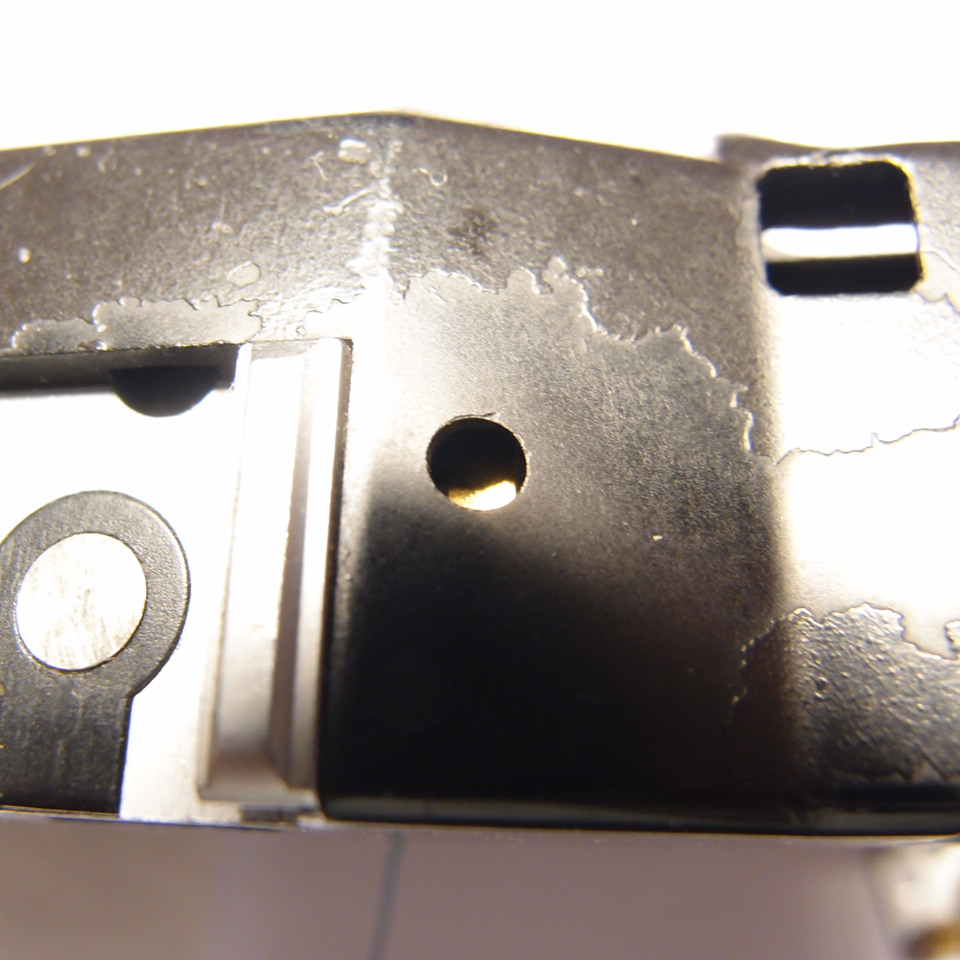

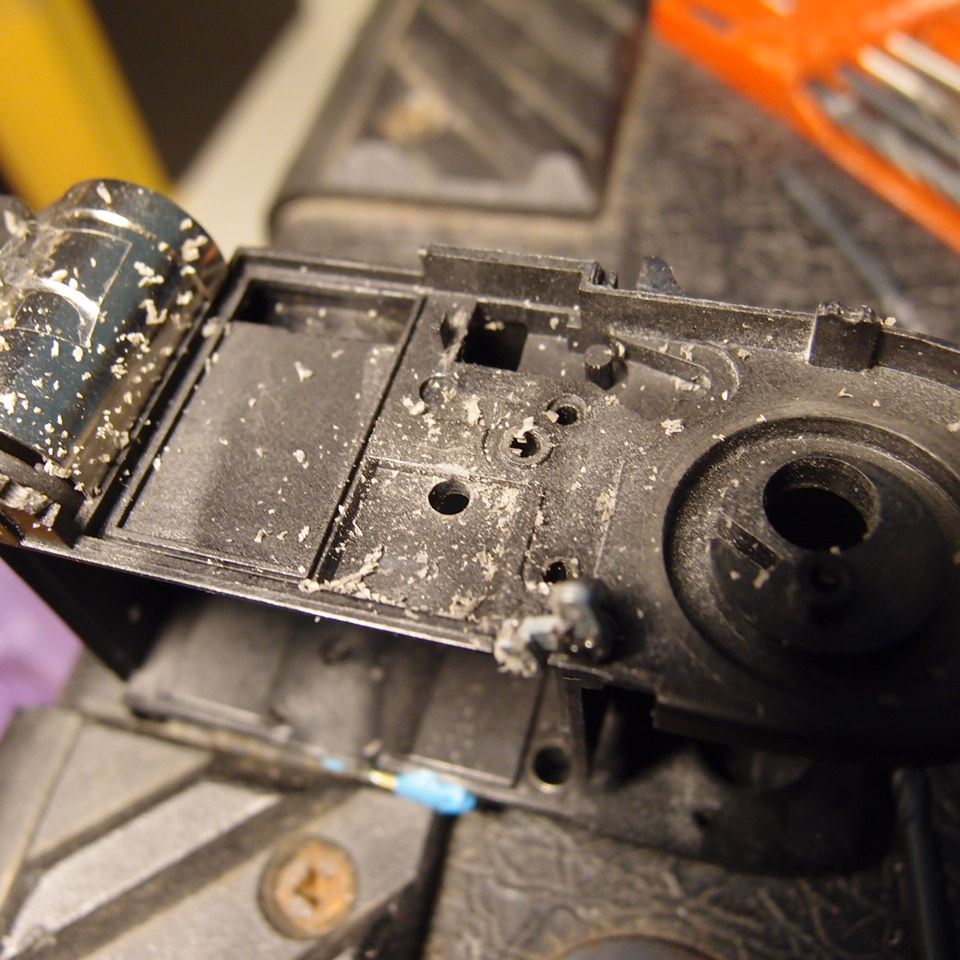

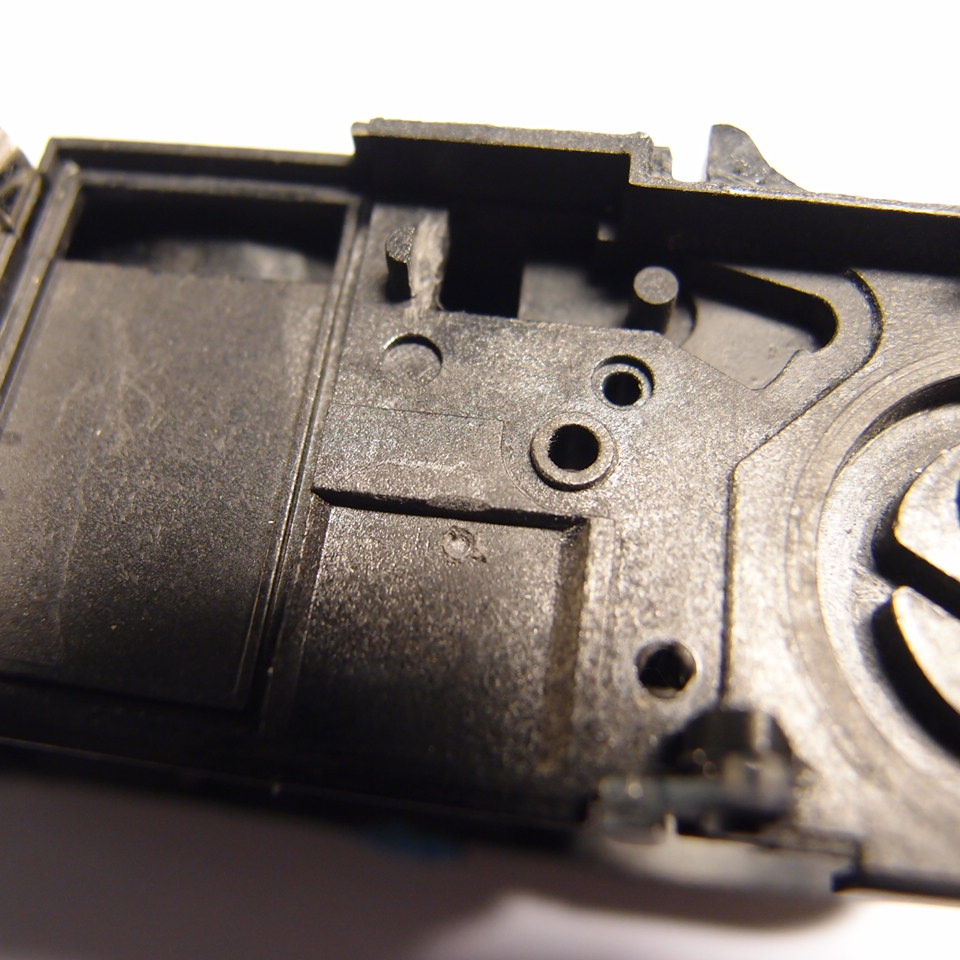

Drilled hole on PCB
Be careful with the wires

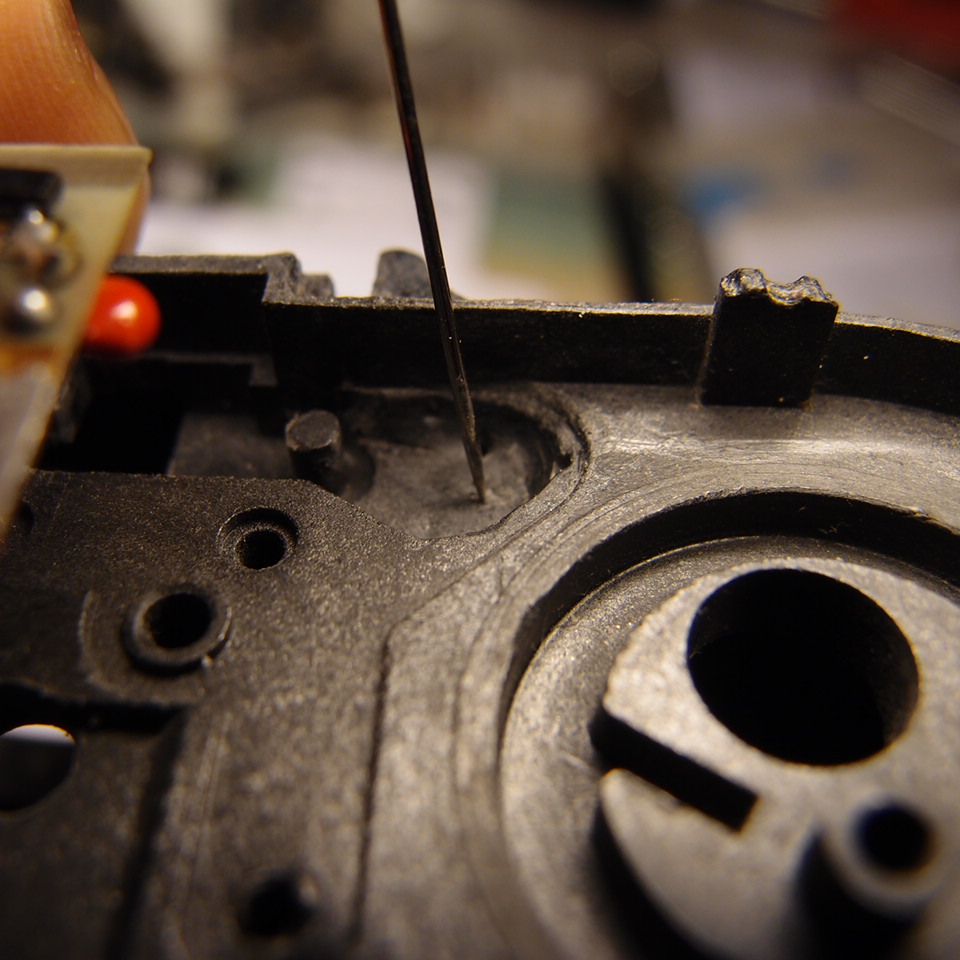

Marked drill point

A New Shutter Switch (Electrical)

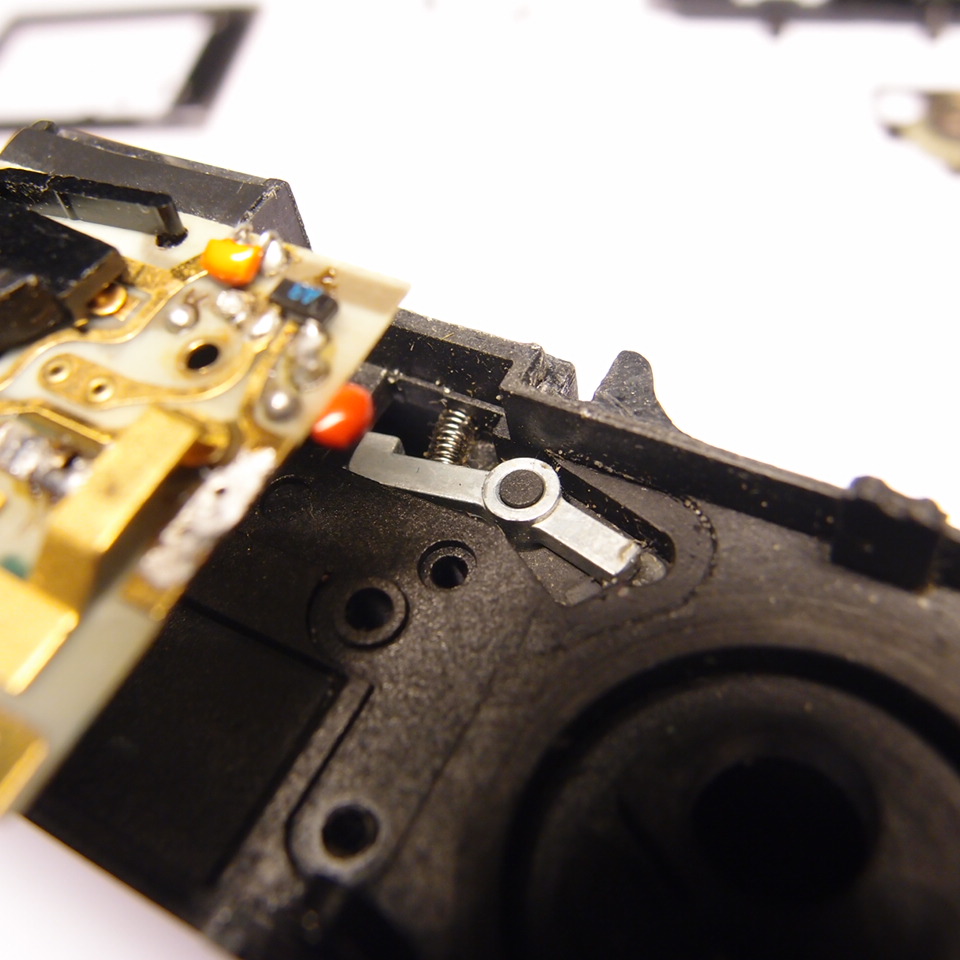

Remove the Shutter button lock when in close position arm
Cutting in half to create space for the wires to go underneath (switch and LED)
Setting a mark

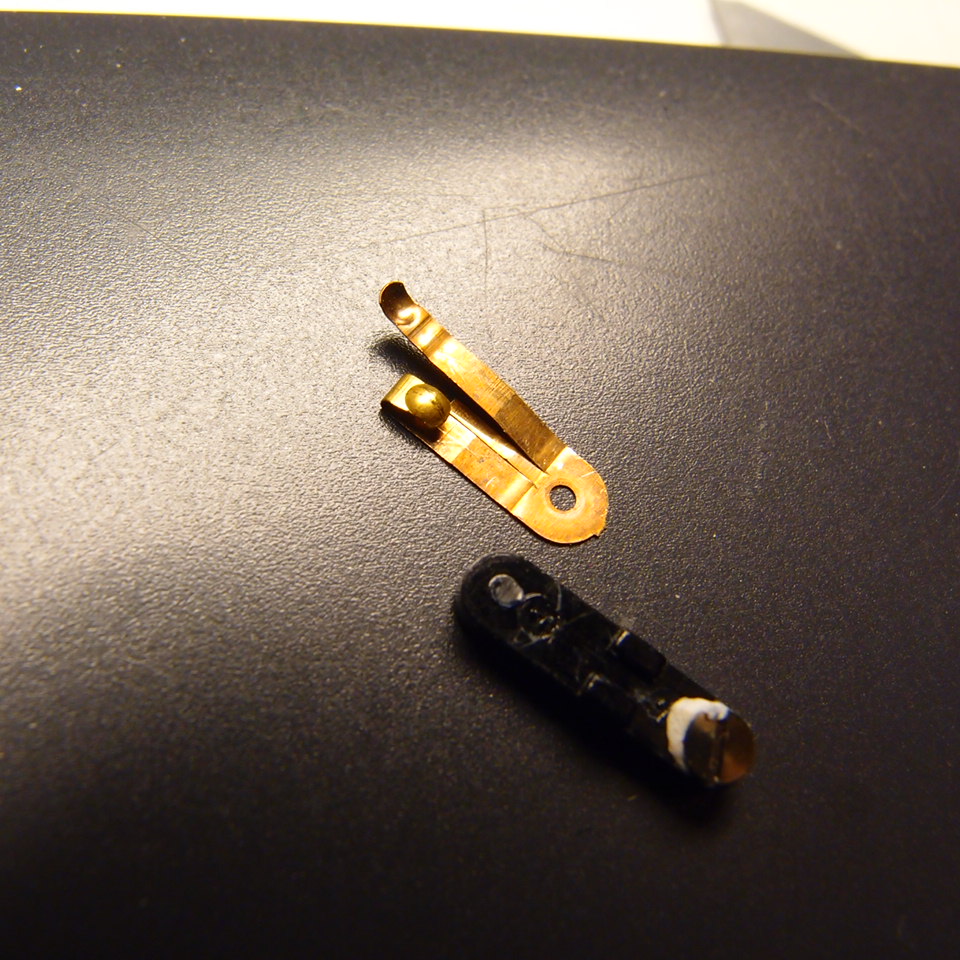

build a simple switch using unused parts

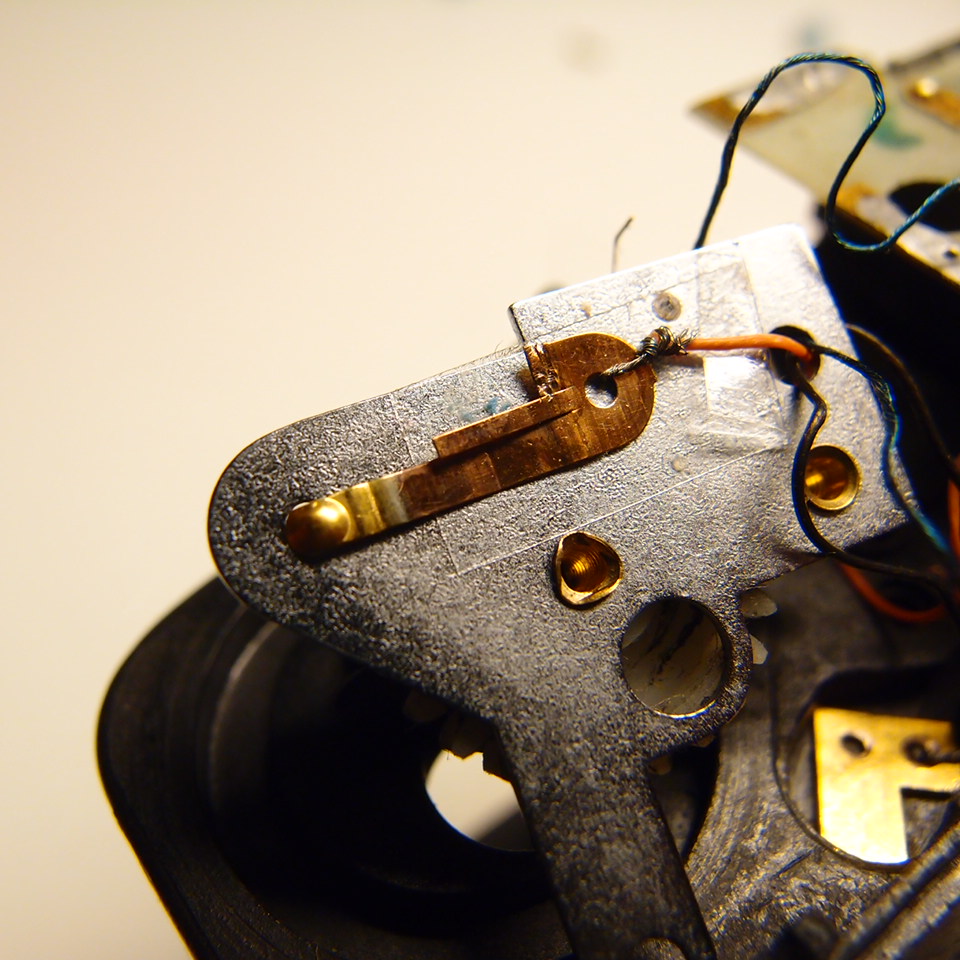

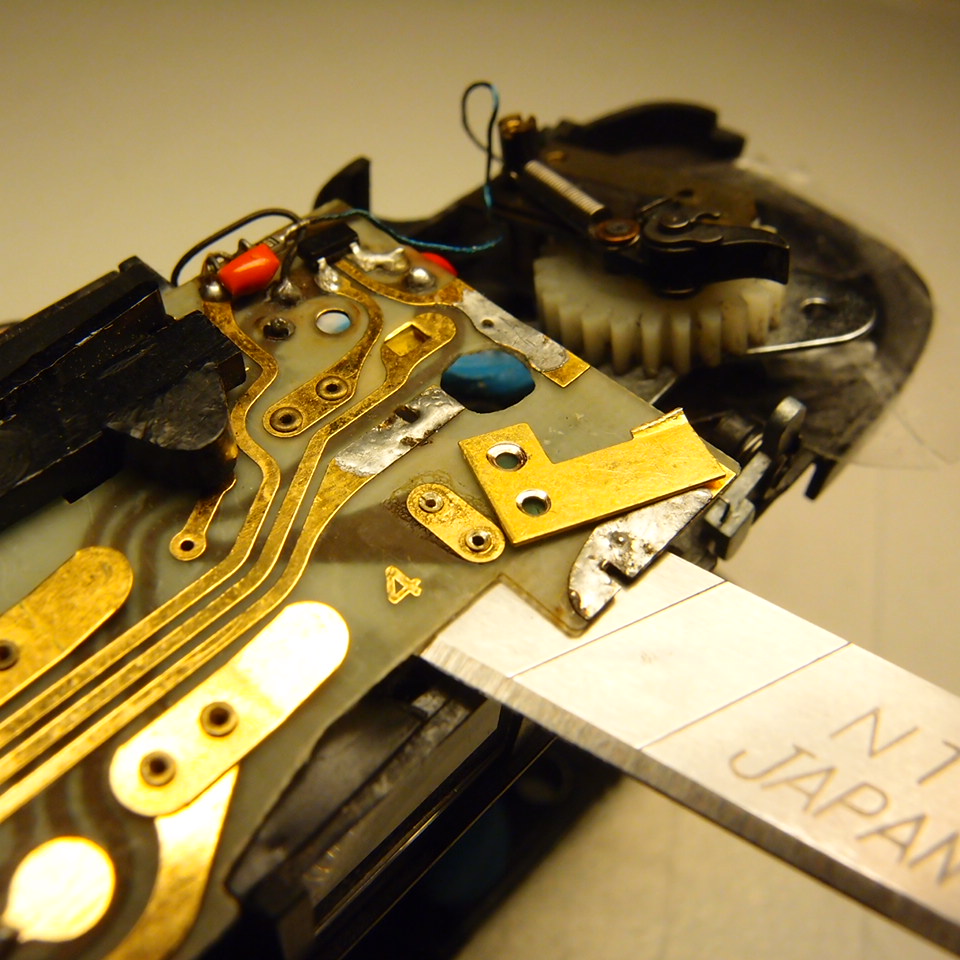

The original switch copper connectors above
Estimating position

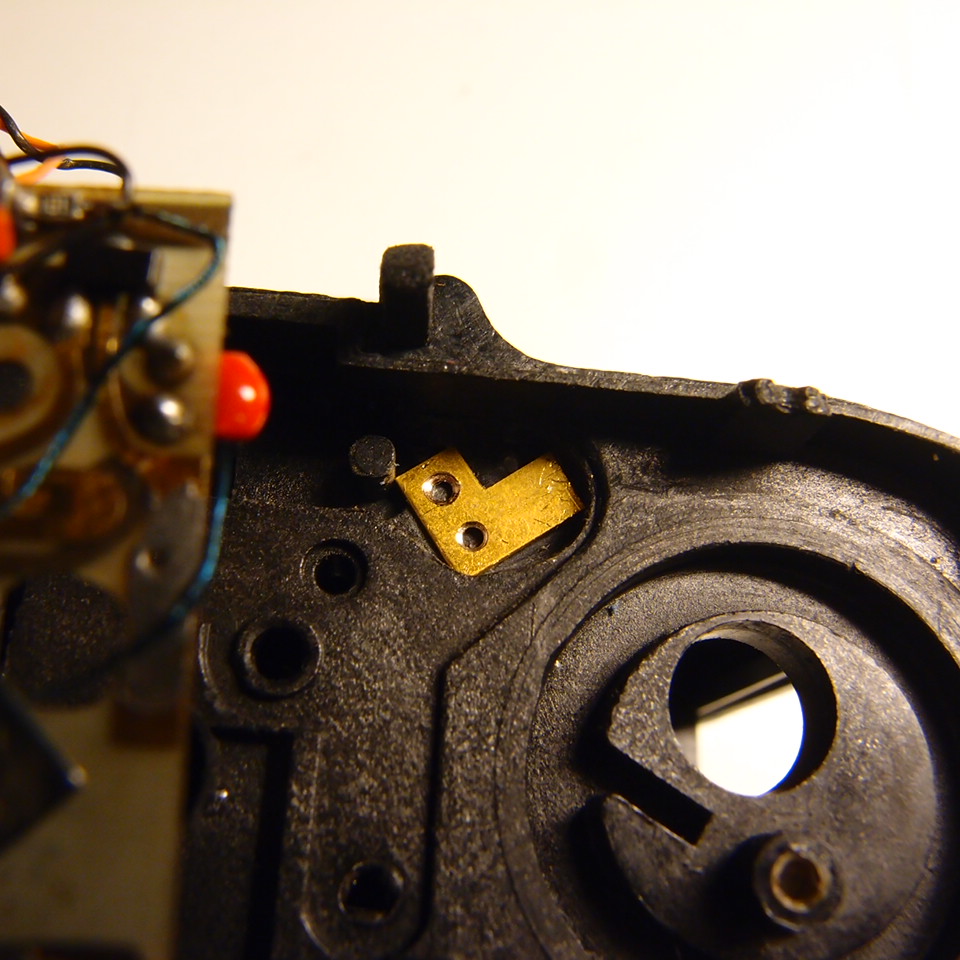

Wired

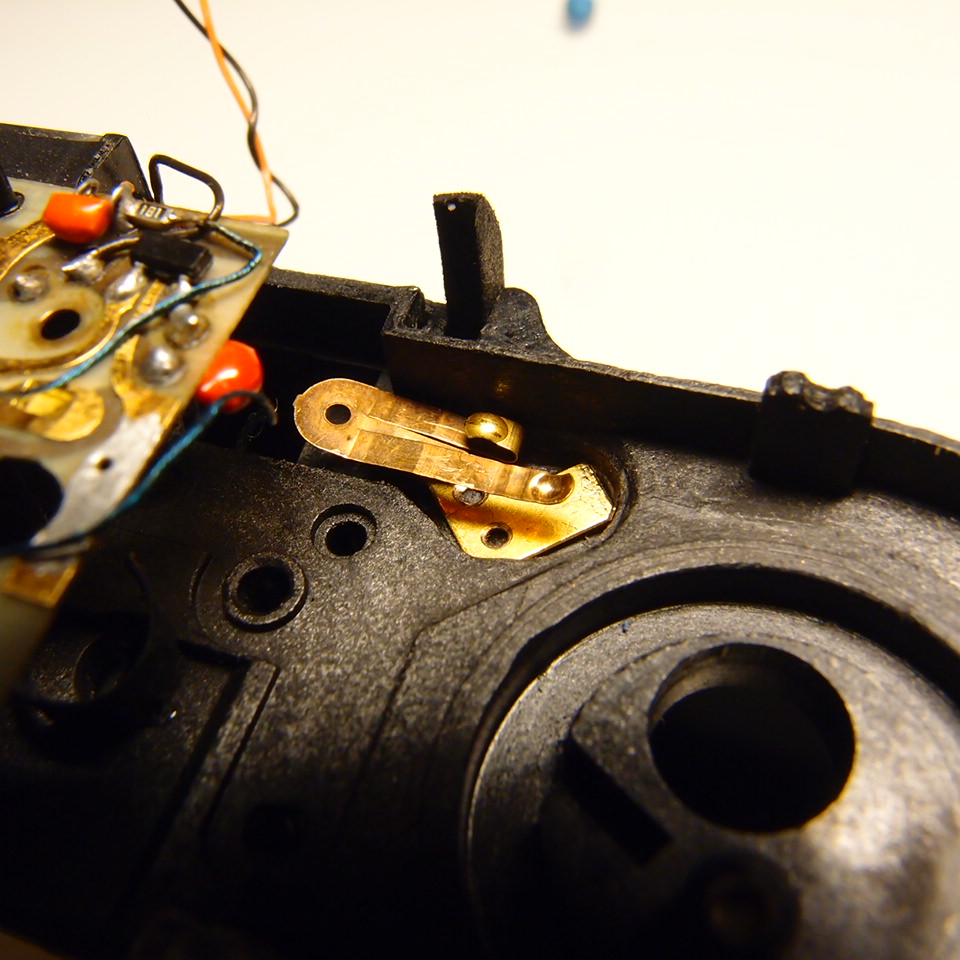

Fly the wires (black & orange) to the new switch.
Observe solder points

Remote/Hands Free Shutter Release + B mode

The best Mod in this camera. Coming soon!

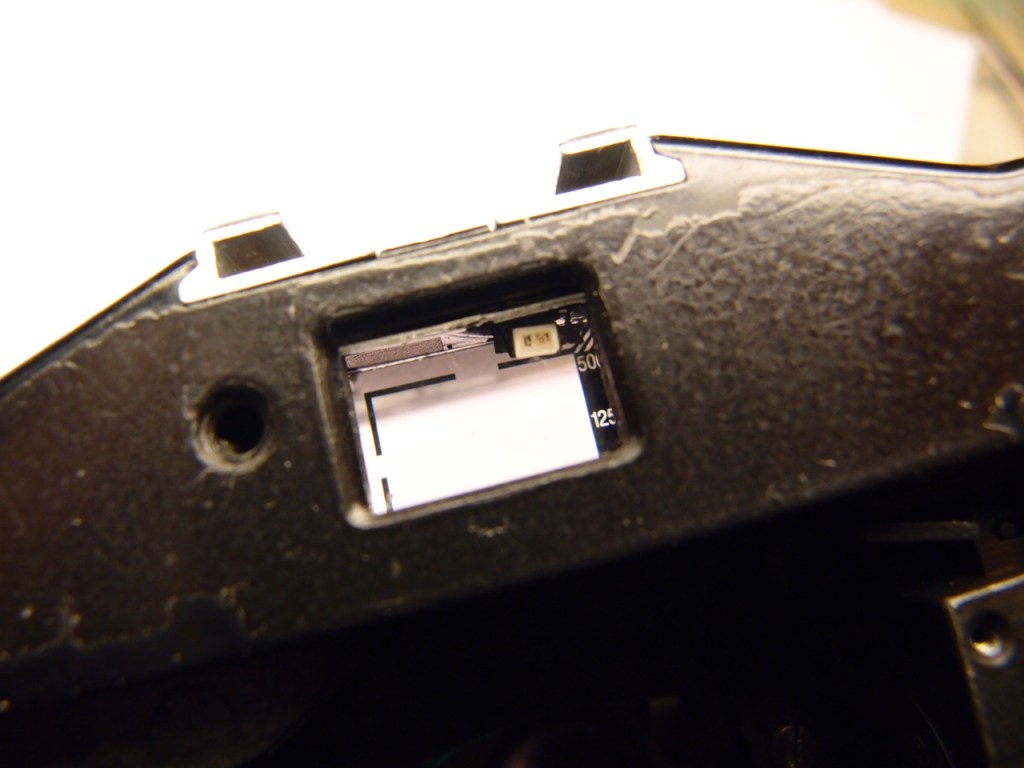

Open Shutter LED indicator

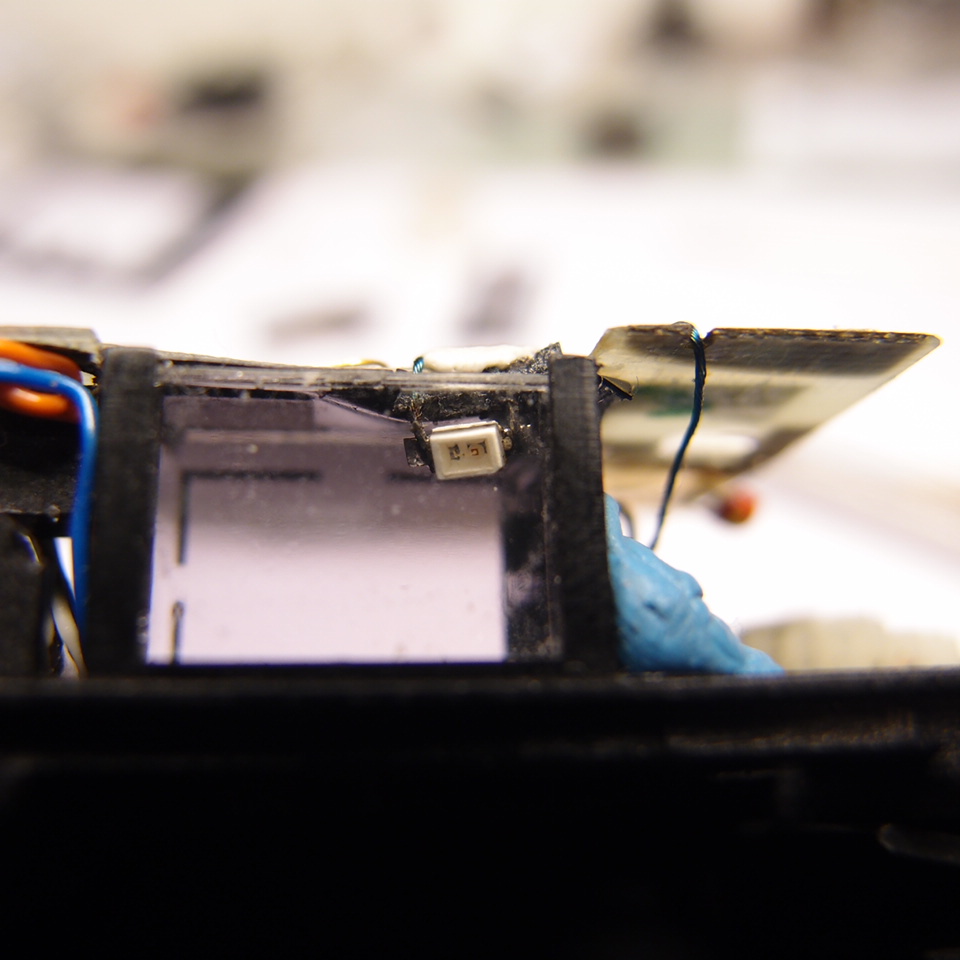

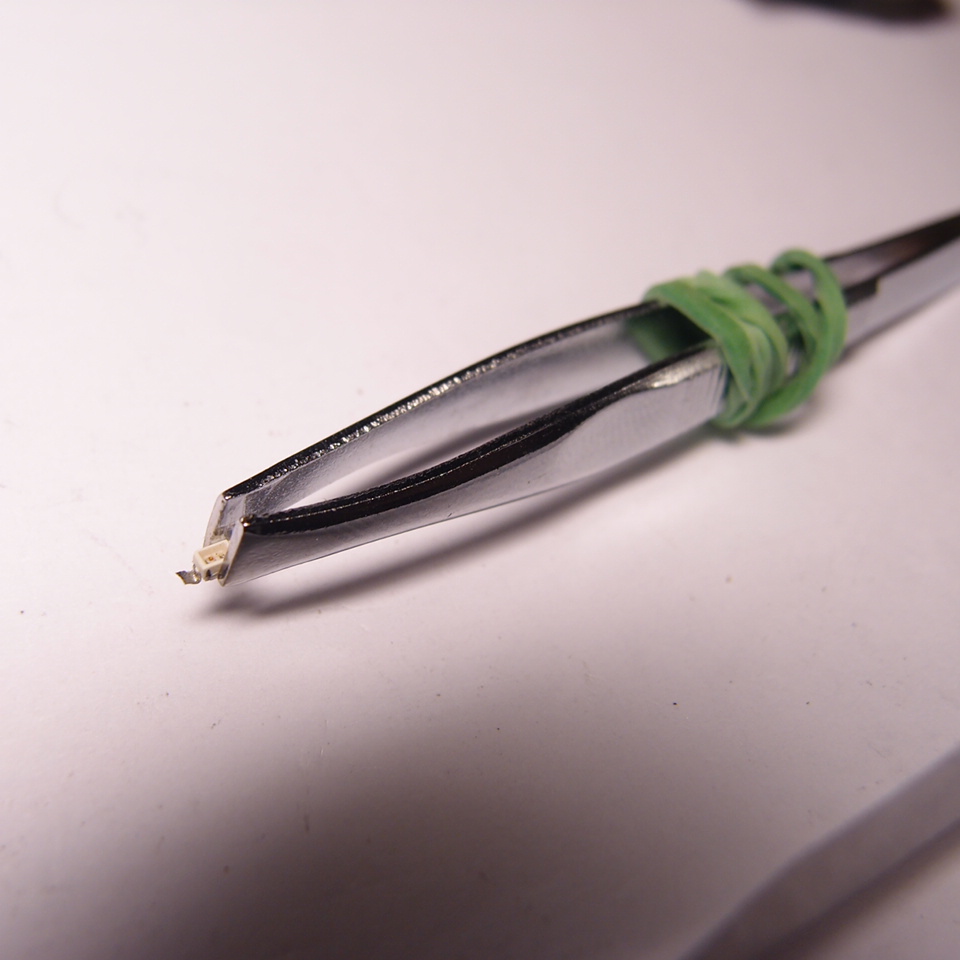

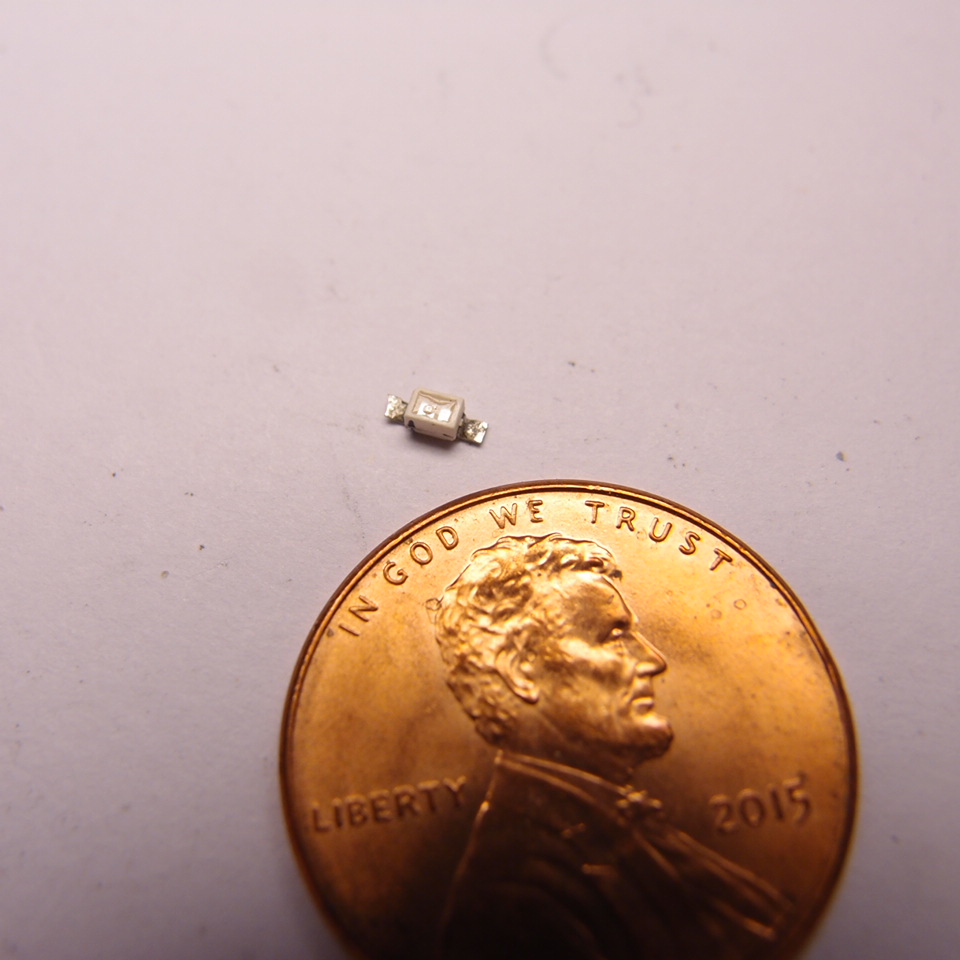

SMD LED
Soldering

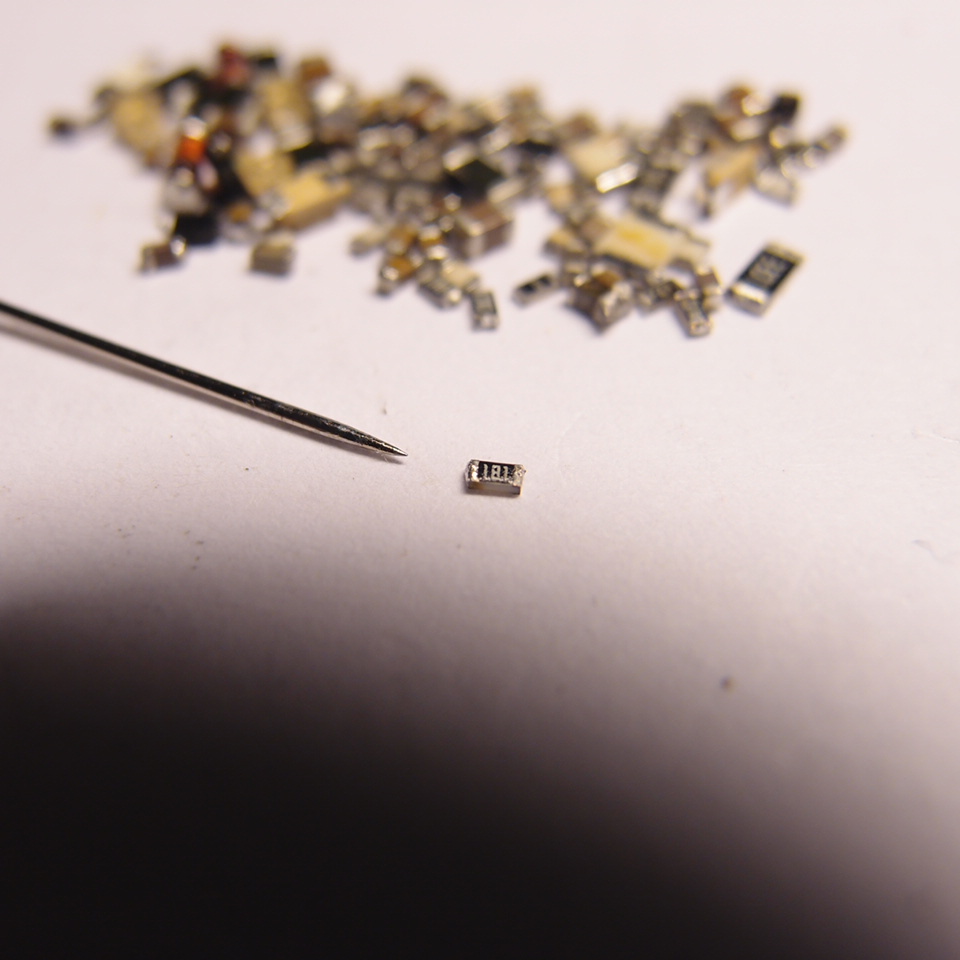

180 ohm SMD resistor

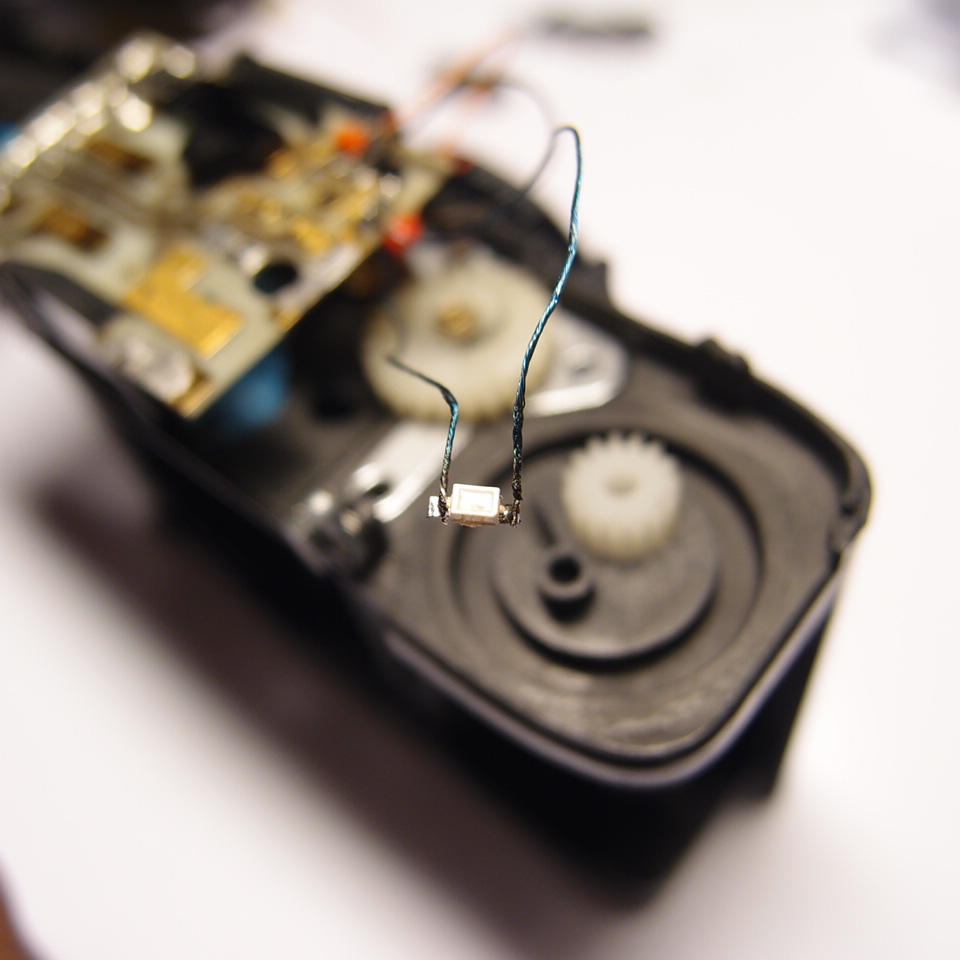

Used headphone wires
connection to open solenoid

1/250th sec Manual Mode (Replace ISO 800 selector as a switch)

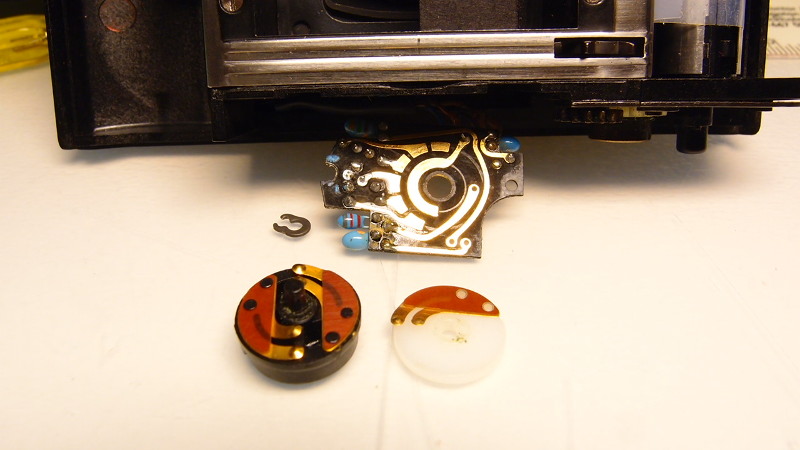

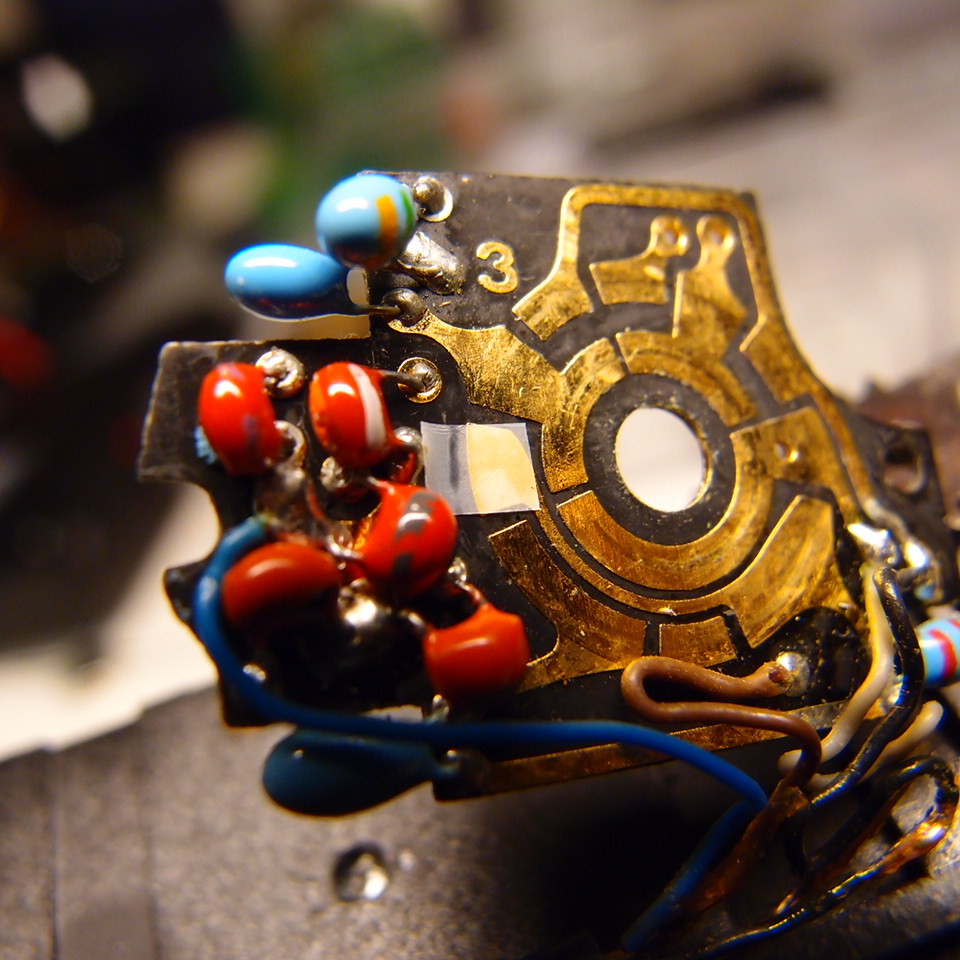

This behavior was first discovered when I was testing & turning the ISO dial and noticed that the shutter speed sounded fast when the dial was in between settings of 400 and 800 or between 50 and 100. After some research, by insulating the ISO 800 copper contact, the shutter fires at a consistent 250th sec.

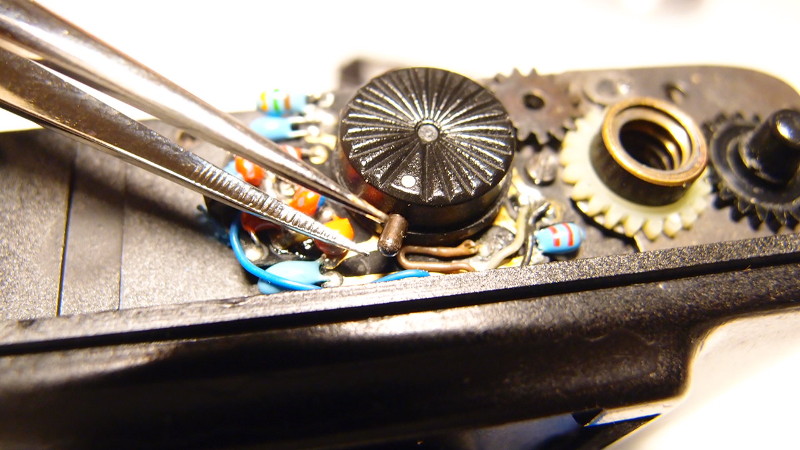

Insulated contact

Will be updating both pages (part 1 & 2) with more detail steps and images. I apologize for any wrong terminologies used/mentioned here.
